Packet Scavenger Hunt

Using Wireshark, I collected and analyzed network packets.

Highlights

• Captured and analyzed network packets using Wireshark
• TCP handshake discussion with an analogy

The Long Story

In my virtual lab environment, I captured network packets to see how data travels between devices on a network. I am using Wireshark to monitor traffic on my VM running Ubuntu.

The Types of Packets (and Briefly What They Mean)

• DNS (Domain Name System): Converts a readable domain name, like williamgbooth.com and translates it to an IP address that devices on a network can use.
• HTTP (Hypertext Transfer Protocol): Moves assets between servers and clients, like web pages.
• HTTPS (Hypertext Transfer Protocol Secure): Moves assets between servers and clients securely, encrypting the data to protect it from being read by 3rd parties who shouldn’t be able to.
• TCP (Transmission Control Protocol): Uses a “handshake” process to establish reliable connections. Ensures that data is not lost along the way.
• UDP (User Datagram Protocol): Sends data without ensuring a connection first.
• ICMP (Internet Control Message Protocol): Issues error messages in a connectionless manner.
• DHCP (Dynamic Host Configuration Protocol): Assigns local IP addresses, subnet masks, and other details for devices.
• ARP (Address Resolution Protocol): Uses a devices MAC address (hardware address) to match it with an available IP address on the local network.

What’s Going on in Wireshark

Wireshark captures all the network traffic that the network interface on my VM sends and receives. I chose to use a VM for this to safely analyze packets and reduce privacy concerns. The MAC address in Wireshark is not my real hardware MAC address, adding an extra layer of privacy while I study network traffic. I then export the .pcapng file onto my host machine for analysis. I was able to observe all the packets listed above in my captures.

Preliminary Observations

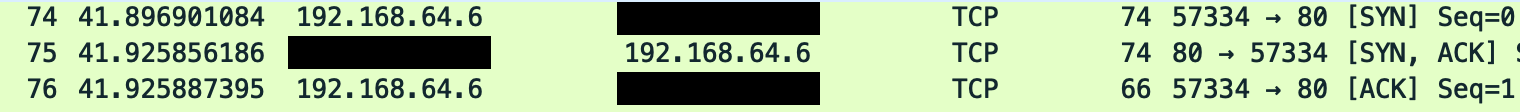

TCP: In this screenshot, the threeway handshake is visible. I have redacted the IP address of the server for privacy reasons (I’m being overkill). My IP address is visible because it is a local address on my VM. The [SYN, SYN-ACK, ACK] sequence on the right of the screenshot shows the steps of the handshake process.

Here are the steps of a TCP handshake:

1. My computer requests a connection to the server by sending a SYN (synchronize) packet.
2. The server responds with a SYN-ACK (synchronize-acknowledge) packet to acknowledge the request.
3. My computer sends an ACK (acknowledge) packet back to the server, completing the handshake and establishing a reliable connection.

It’s kind of like the exchange of rings during a wedding ceremony: one spouse offers a ring (SYN), the other accepts it and offers their own ring in return (SYN-ACK), and finally the first spouse acknowledges the exchange (ACK).
